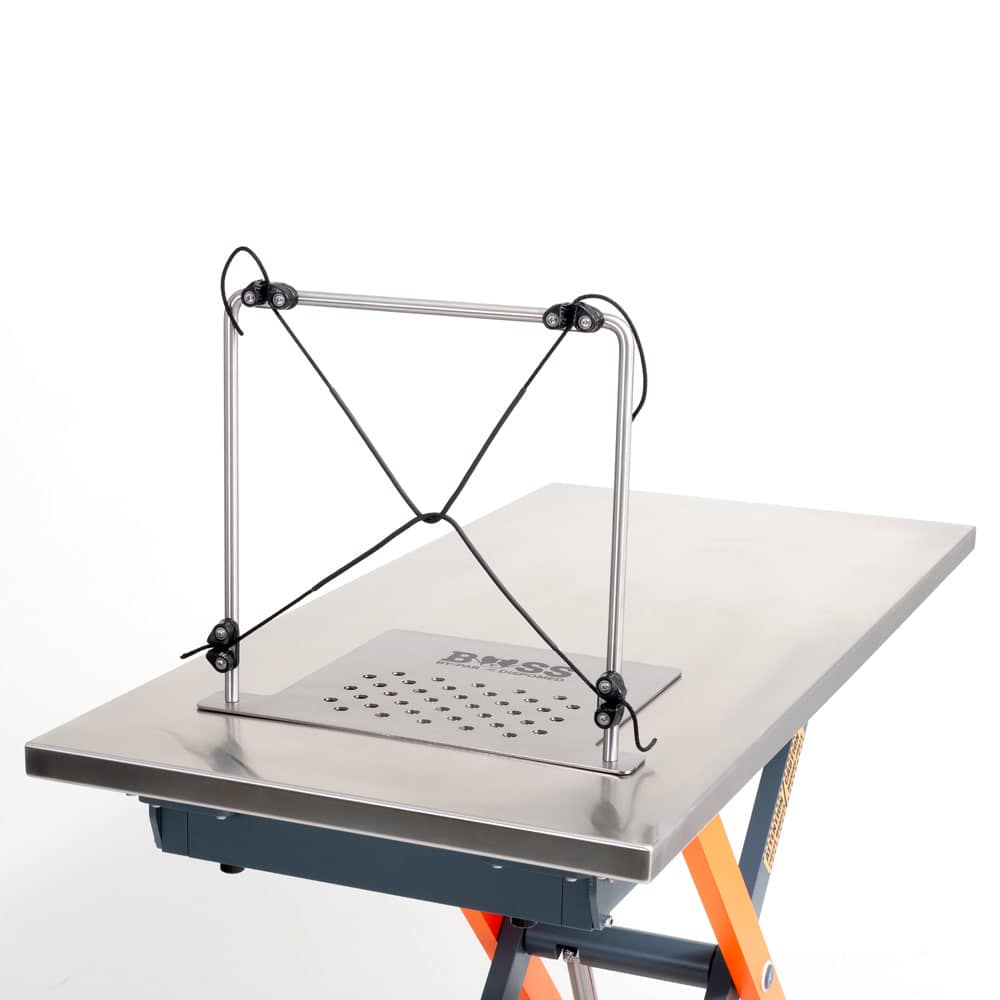

Its design allows it to be placed on any veterinary table for quick patient positioning. As it rests on the tabletop, the surgical positioning device maintains patient positioning despite table height or inclination adjustments. The perforated base allows for irrigation during dental procedures. The ropes are covered with rubber tubing allowing for proper disinfection between procedures.
Key Points:
- Tabletop design offers universal fit onto veterinary tables
- Safe, reliable and improved method of positioning for patients undergoing a variety of surgical and dental procedures including brachycephalic obstructive airway syndrome (BOAS) corrective surgery
- Optimal intraoral workspace with unobstructed* access to the oral cavity laterally
- Improved surgeon and dentist ergonomics
- Multifunctional (upper airway, oropharyngeal, dental, etc.)
- Perforated base allows for irrigation during dental procedures
- Extremely portable -base and bar detach easily for compact transport
- Easy disinfection
- Rubber-covered rope gag allows for disinfection between patients
- No assistants required -increases staff availability and efficiency
- Reduction of surgical time
- Includes elastic silicone tie to secure the anesthetic breathing circuit
*compared to other products
List of procedures performed with the BOSS (includes but not limited to):
- Brachycephalic obstructive airway syndrome corrective surgery
- Tonsillectomy
- Glossectomy
- Rostral hemimandibulectomy
- Cleft palate repair
- Ventral rhinotomy
- Root canal
- Pulpectomy

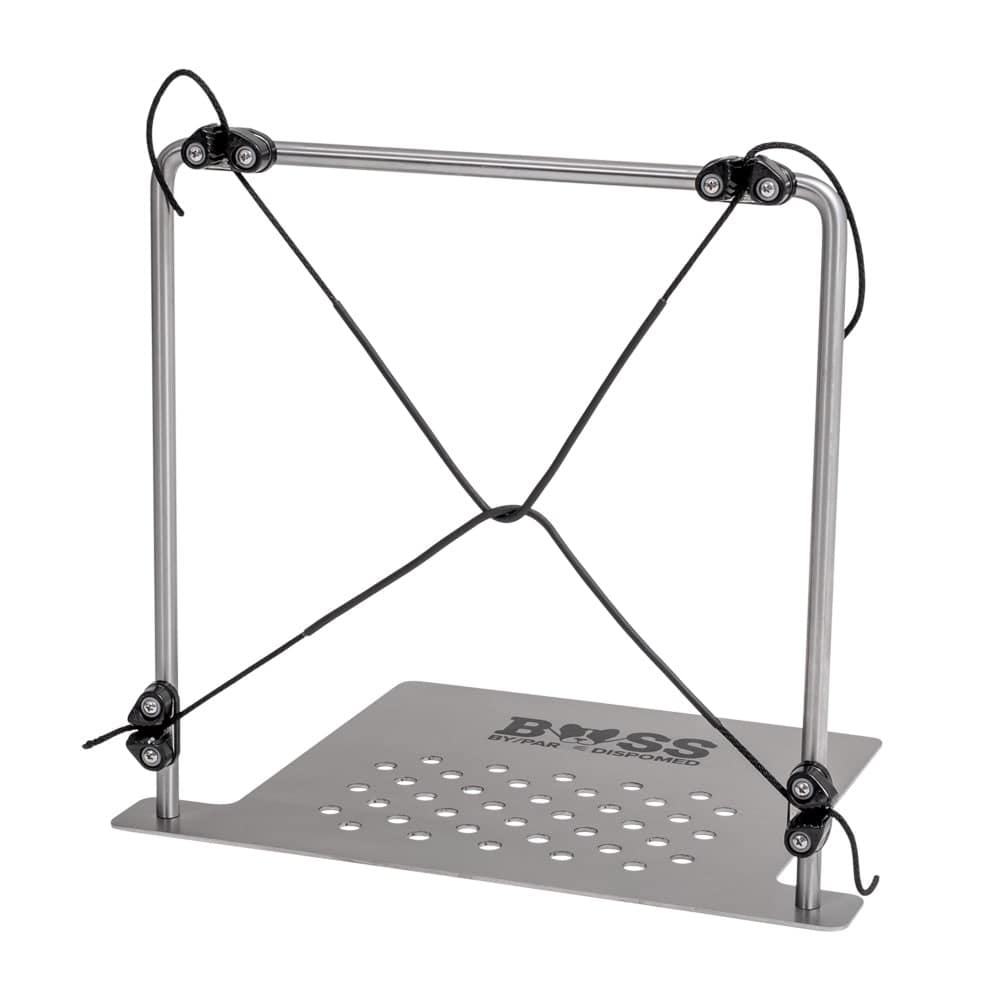

The BOSS is made of medical-grade stainless steel, allowing for easy disinfection between procedures.
Dimensions
- Height: 14″ (35.56 cm)
- Front width: 16″ (40.64 cm)
- Rear width: 12″ (30.48 cm)
- Length: 12″ (30.48 cm)
Load Capacity
- Supports up to 90 lbs (40 kg) with a 1/8″ (3.175 mm) rope

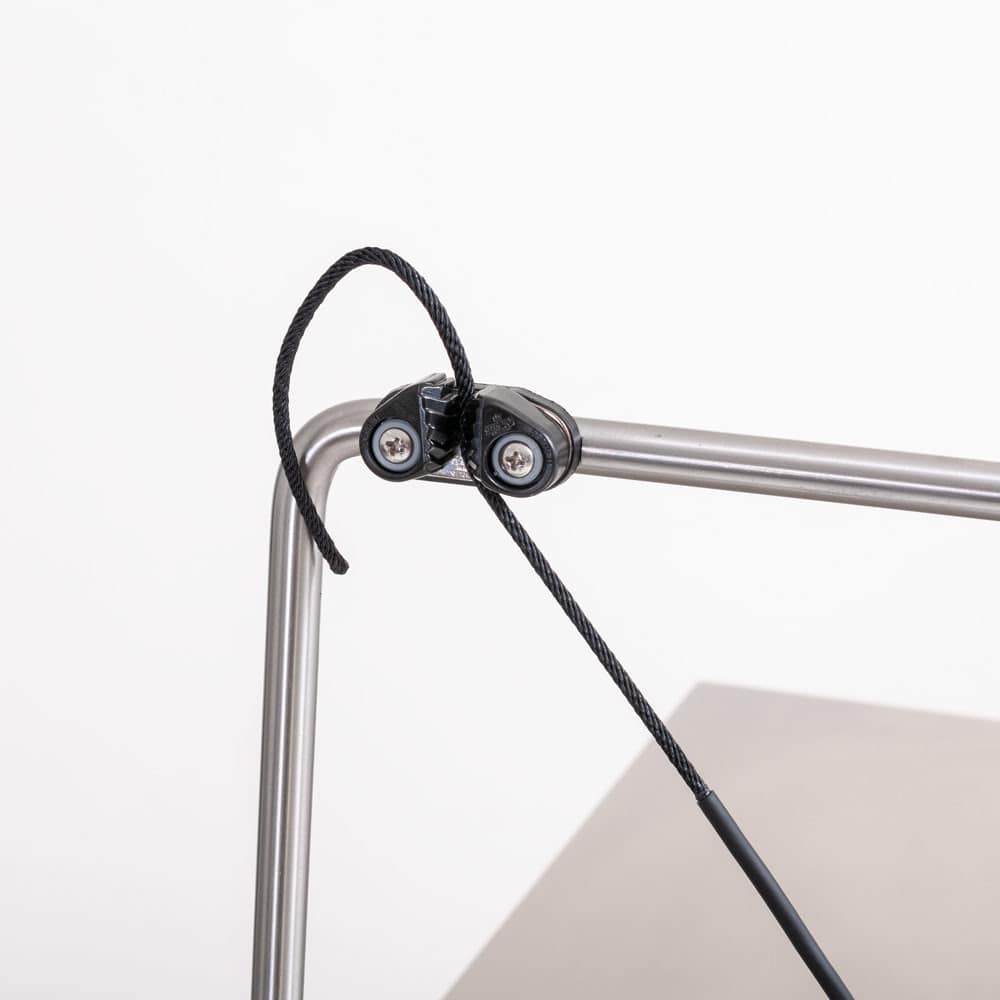

- The top rope measures 30″ (76.2 cm)
- The bottom rope measures 24″ (60.96 cm)
- Both ropes are covered in heat-shrink adhesive rubber tubing for easy disinfection
Patient Safety Guidelines

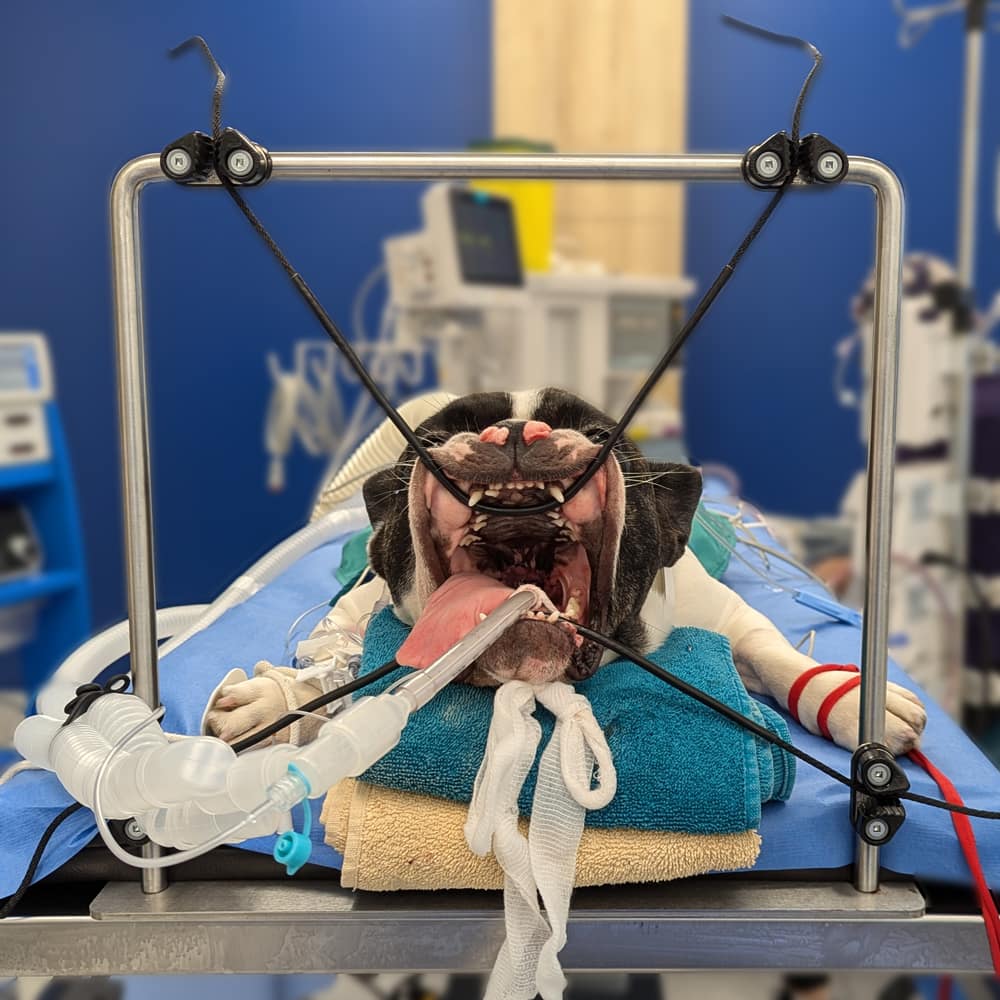

- Use the provided rope gag to suspend the patient’s head by the canines, as commonly done in BOAS corrective surgery
- Limit rope load to 30 kg
- As a general rule, a patient’s head accounts for 10% of total body weight, For example, a 50 kg dog’s head weighs approximately 5 kg, which is well within the device’s safe load range
Airway Management
The BOSS includes an elastic silicone tie that secures the anesthetic breathing circuit to the positioning device, ensuring safe airway access during procedures.
Optional Accessory
A sterilizable intraoral meshed fabric gag is available for patients without canine teeth, providing a reliable alternative to the rubber-coated rope gag. Please ask your sales representative for more information.
Cleaning, disinfection and sterilization:
The rubber-coated rope gags should be soaked in warm water with enzymatic soap to remove organic debris. The rubber-coated section should be disinfected with any alcohol- or hydrogen peroxide-based disinfectant immediately prior to the procedure. The silicone tie can be cleaned similarly.
The ropes and silicone tie are also autoclavable using normal settings (30 minutes at 121°C (250°F) in a gravity displacement sterilizer. * Sterilization may reduce the ropes’ lifetime compared to washing and disinfection described above.
The base, bar, screws and Allen key are autoclavable. Autoclave chamber dimensions may prevent sterilization in small units. These components can be cleaned with enzymatic soap to remove organic debris followed by any alcohol- or hydrogen peroxide-based disinfectant.
