The truth about dead space in a breathing circuit

A lot of confusion exists in veterinary practices concerning the definition of dead space in a breathing circuit.

There are 2 types of dead space:

1. Anatomical dead space
2. Mechanical dead space

Nothing can be done about anatomical dead space, as it is the patient. Mechanical dead space, however, must be kept to a minimum.

Understanding Dead Space

Dead space in the breathing circuit is the space where inhalation and exhalation coincide. Since patients breathe in and out of the same tube, they could inhale unfiltered (containing CO₂) exhaled gas.

There are four critical places where you can find dead space:

1. The portion of the endotracheal tube which extends out of the trachea (from the mouth to the breathing circuit)
2. The elbow on the breathing circuit
3. Any connector used between the end of the tube and the breathing circuit (e.g., CO₂ adapters, apnea alarm adapters, etc.)
4. The Y piece at the end of a Y circuit

Y Patient Circuit

The tubes on the Y circuit do not cause dead space because of the check valves on the absorber. The inhalations of the patient go through one tube and the exhalations through the other. Using tubes with a smaller diameter does not reduce dead space.

Bain Patient Circuit

In addition to the dead space shown in the picture, if an insufficient flow is used with a Bain tube, then the patient will be re-breathing CO₂. The fresh gas flow must be greater than the tidal volume that the patient breathes. Otherwise, there will be CO₂ build-up and the difference between tidal volume and fresh gas flow will essentially be additional dead space.

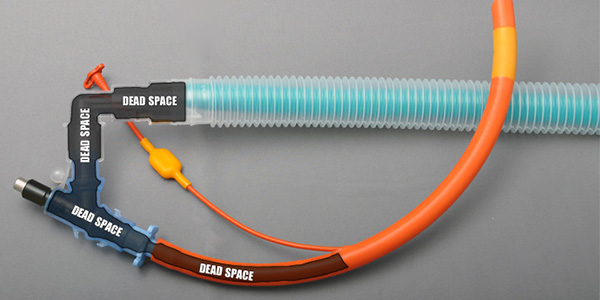

Universal F Patient Circuit

The Universal F circuit has gained in popularity on the veterinary market. It was originally designed as a single patient use circuit in human anesthesia. Its advantages are: better heat recovery and better humidification of the gas. Its disadvantage is that it can be easily connected to the wrong port, therefore, losing all of its advantages. On some models, the inhalation tube is not attached to the connector, which can cause increased dead space.

Coaxial Patient Circuit

The Coaxial tube used on re-breathing circuits (not to be confused with Bain tubes) is similar to the Universal F, but without the disadvantages. It has an inhalation tube attached and cannot be connected backwards. It was designed as an improvement to the Universal F.
