The Quattro Plus is the most complete veterinary dental system with ergonomic features. When designing this unit, the primary goal was to help the veterinarian perform his work quicker, easier and without fatigue. Depending on the veterinarian’s preferences, you can adjust the angle of the handpiece console. This feature allows you to place the handpieces at the perfect angle to create the smoothest body movement.
The large shelf offers space to put the different tools needed for the procedure in one place. The rounded edge of the shelf prevents your instruments from falling off. Since there are no joints, seals or visible screws, it is very easy to clean. The suction hose is flexible and light to prevent any tension on the user’s wrist. In addition, the hose is detachable for easier cleaning.
Included with the Highdent Quattro Plus
- Suction
- Air/Water Syringe
- High-speed handpiece
- Low-speed handpiece
- Piezo Scaler
- Instrument shelf
- No.1 universal scaling Piezo tip
- No.2 voluminous calculus scaling Piezo tip
- No.10P shallow pockets scaling Piezo tip
- Quiet compressor means less noise pollution
Specifications
Air/Water Syringe
- Lightweight, compact contoured head
- Quick connect-disconnect tip
- Uses standard autoclavable tips
- 360º tip rotation
- Precise control of air, water, and mist
Piezo Scaler
- Totally autoclavable and easy to dismantle.
Ergonomics
- Simple and easy adjustment of the handpiece console to the desired angle.
Automatic selection of handpieces
- No waste of time selecting the handpiece.
Shelf
- More space for your instruments.
- No joints, seals, or visible screws, for easier cleaning.
- Rounded edge to prevent your instruments from falling.
- 12,5” x 17,5” (32 cm x 44,5 cm).
Suction
- Detachable suction hose for easier cleaning.
- Stronger suction.
- More flexible hose for ease of use.
Adjustable height
- From 31” to 41” (78.7 cm to 104 cm).
Foot control
- Control the handpieces and suction.
- Protective guard.
Muffler
- Highdent™ dental machines include a muffler to reduce noise from the handpieces
Mobile and Secure
- 5.08cm (2”) castors with brakes
Compressor
- The quietest on the market.
- Very easy access to drain valves.
- The fastest oil change in the industry.
- Airflow: 2.1 cubic feet per minute.
110V with oil model
- Amps: 7.0 A
- Power Source: 120 V AC
- Operaring frequency: 50-60 Hz
230V with oil model
- Amps: 4.0 A
- Power Source: 230 V AC
- Operaring frequency: 50-60 Hz
Conforms and Certified
Conforms to UL STD 61010-1
Certified to CSA STD C22.2 No. 61010-1
Intertek No. 4009746
Optional features
- Fiber optics

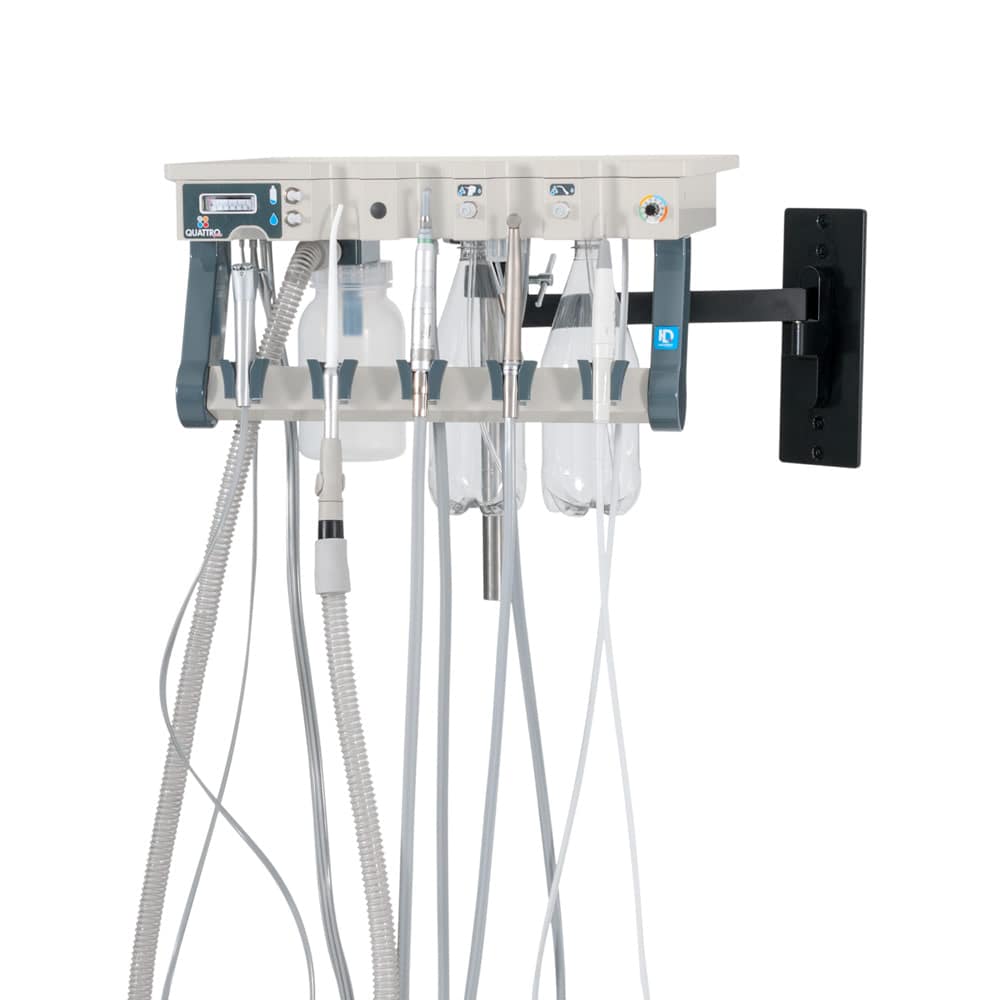

- Wall-mount
Download
Wall-mount Dimensions and installation sheet
Feuille des dimensions de l’Highdent Quattro Plus
Optional Colours
Do you find grey and white boring? The Highdent Quattro Plus is available in several colours that can brighten your workplace, for a low supplement.

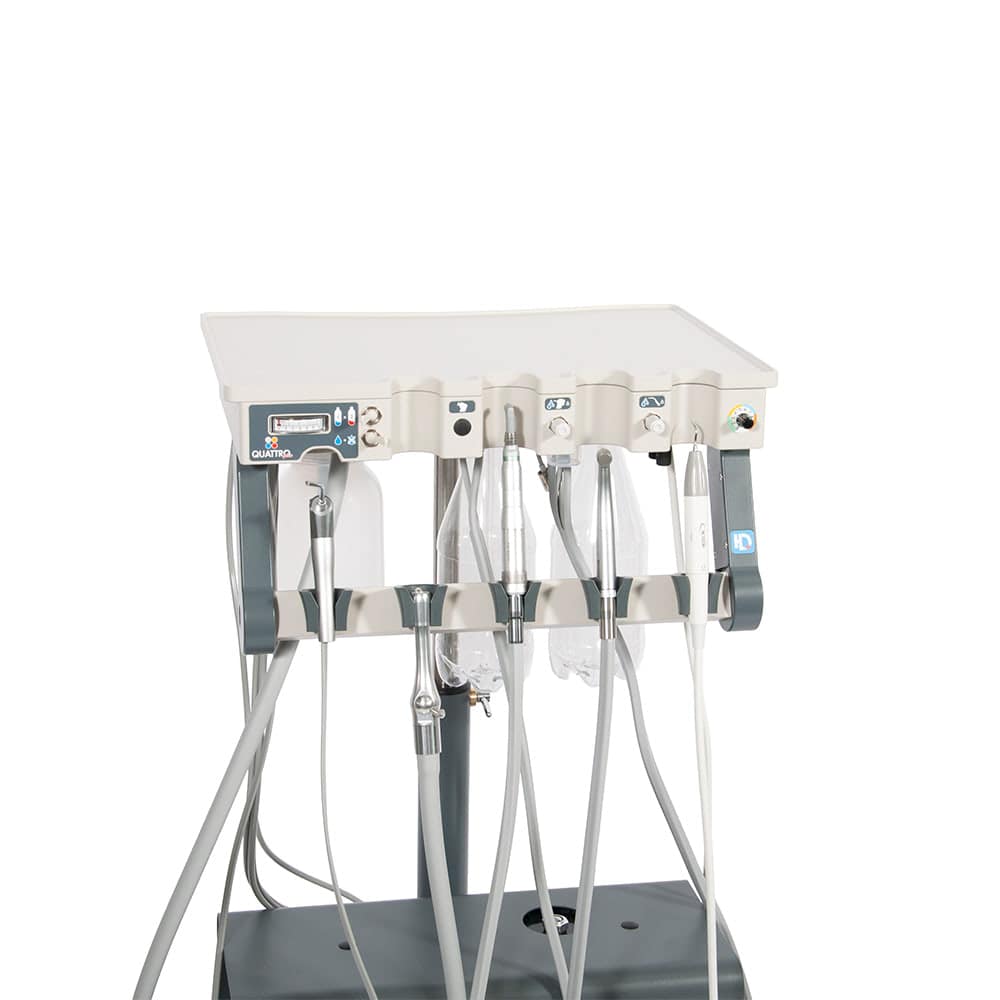

Soft
Clay

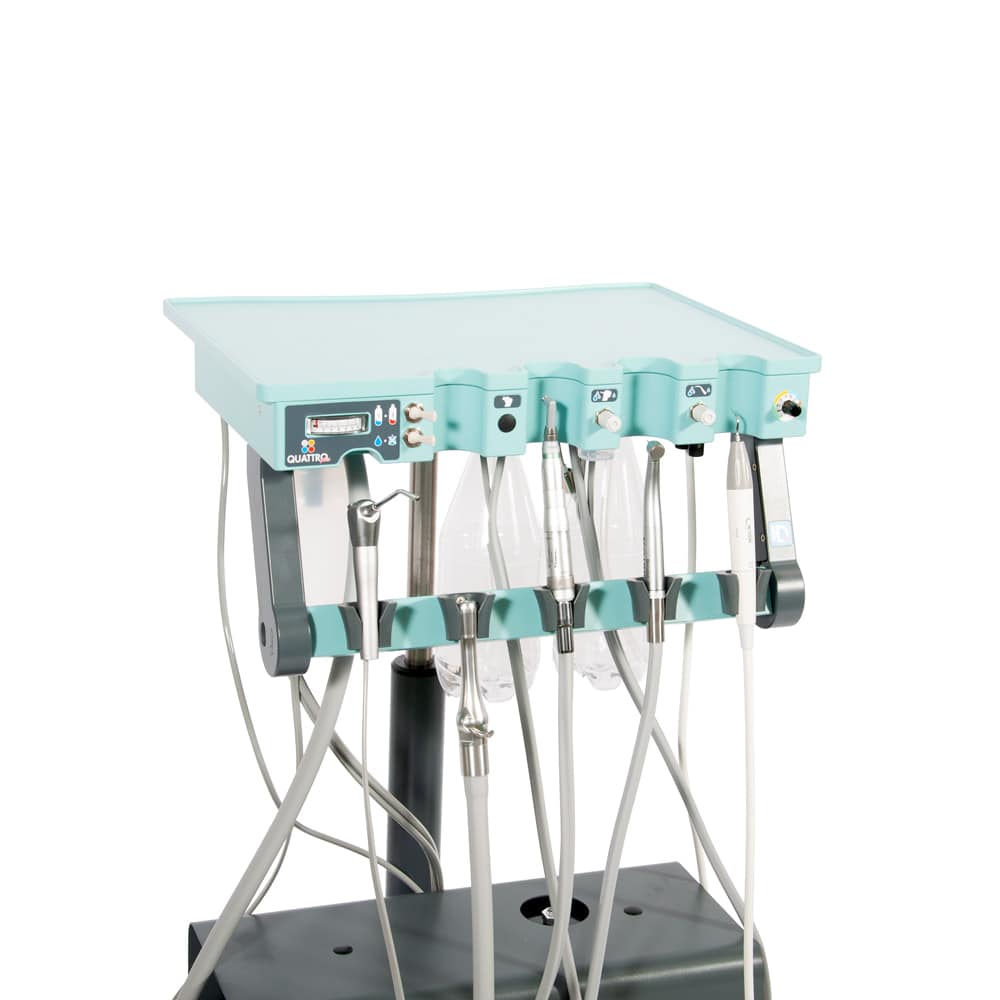

Glacier
Mist

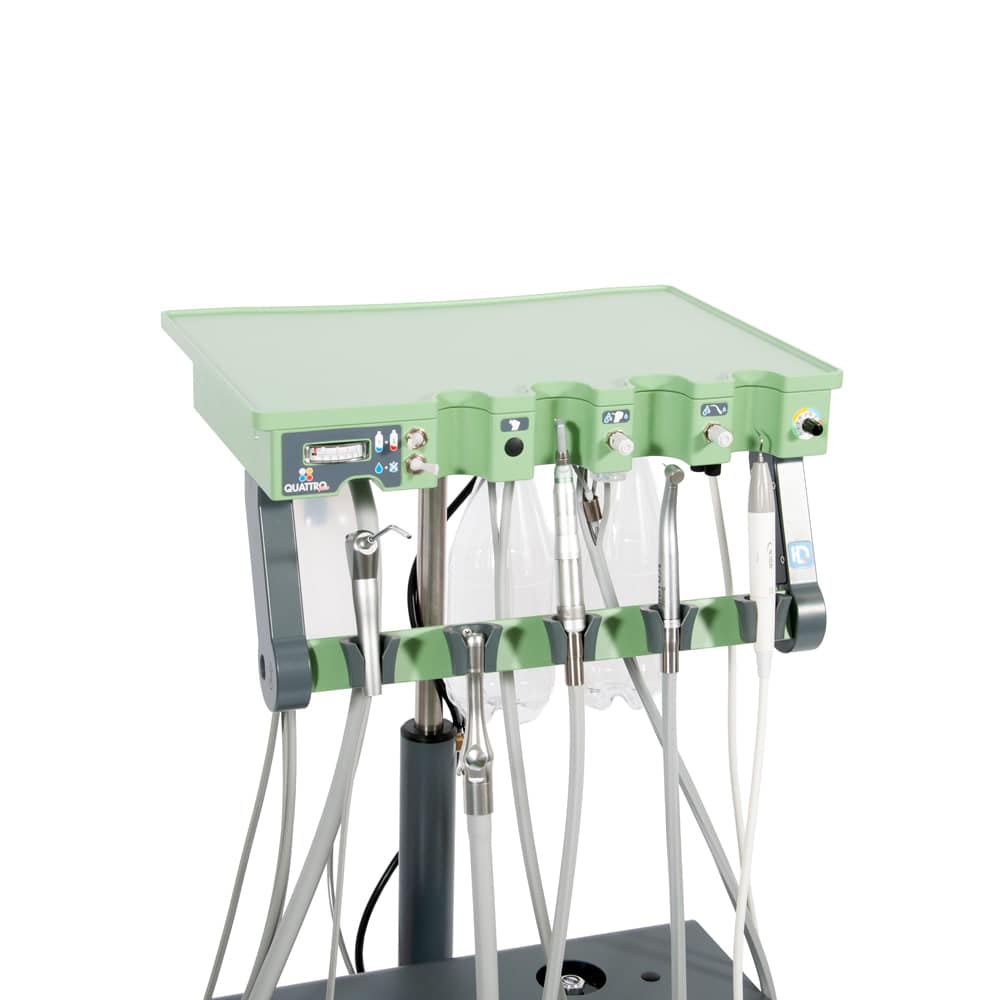

Sage
Green

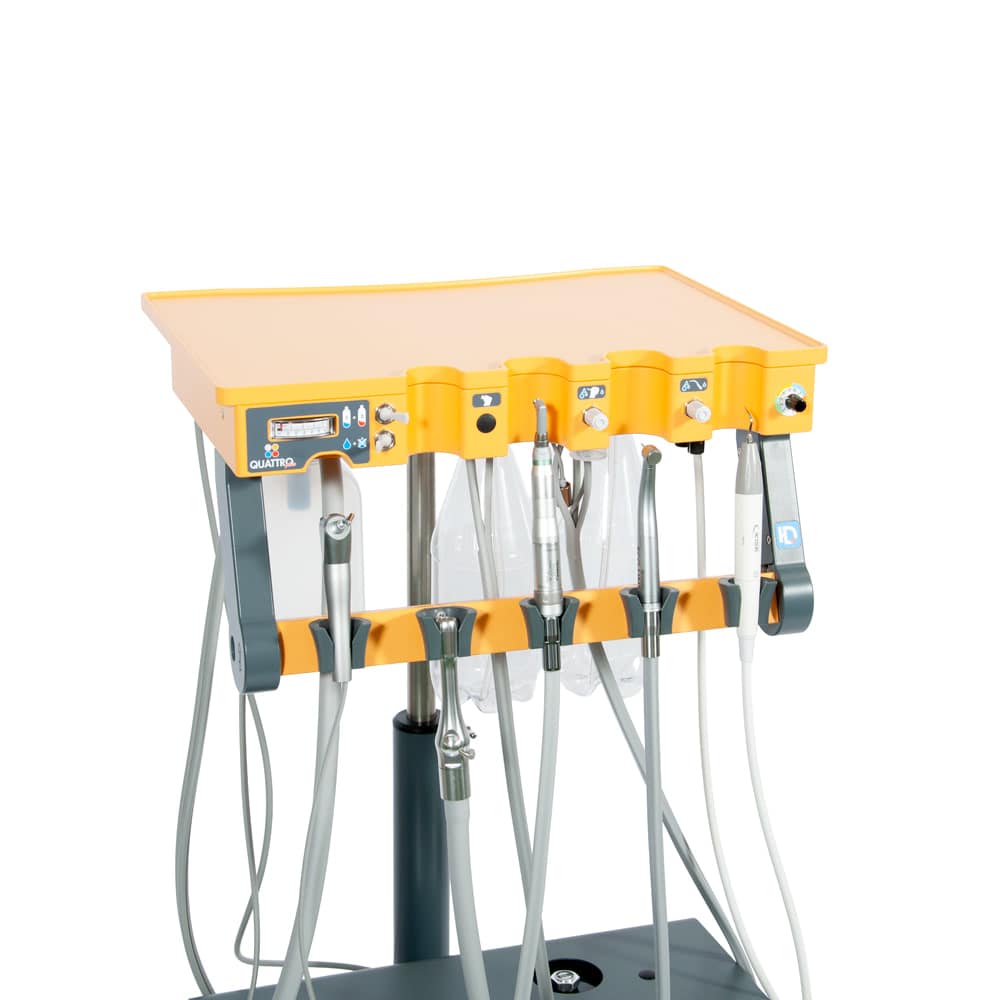

Golden
Honey
Blush
Coral

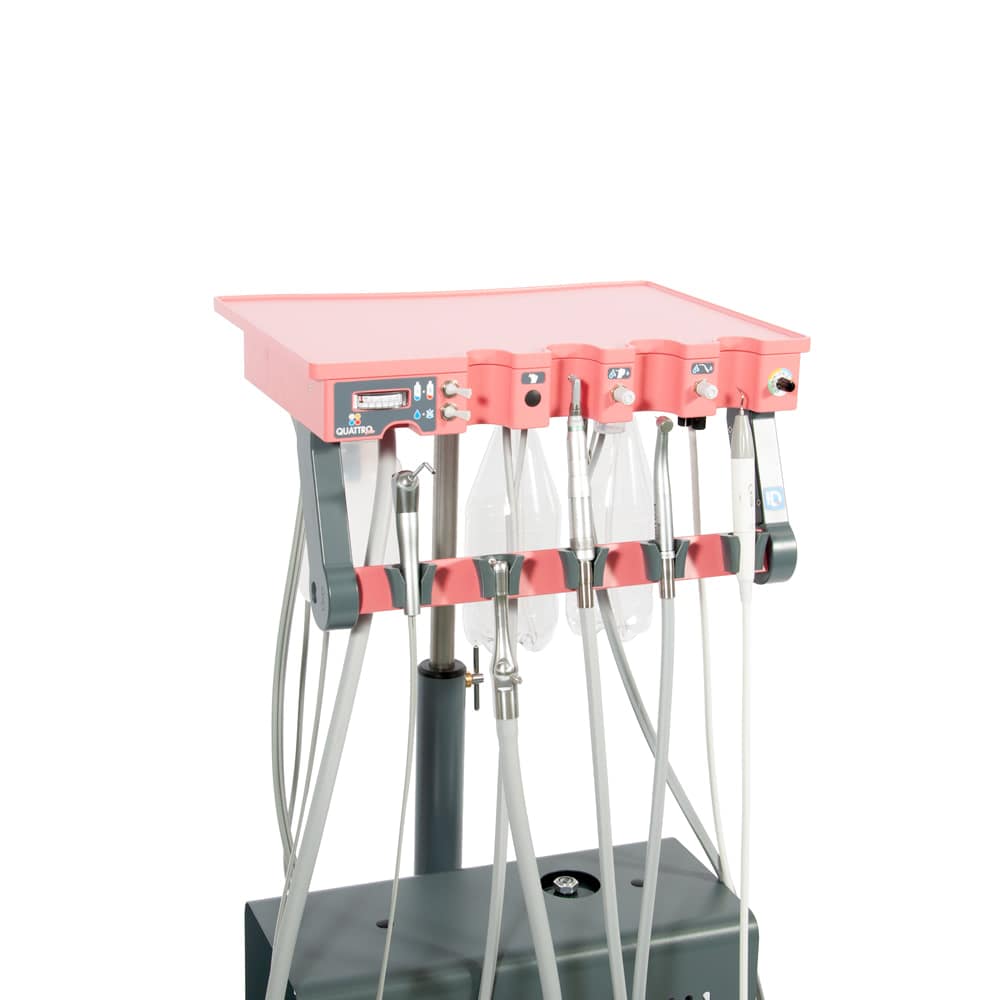

Vintage
Pink

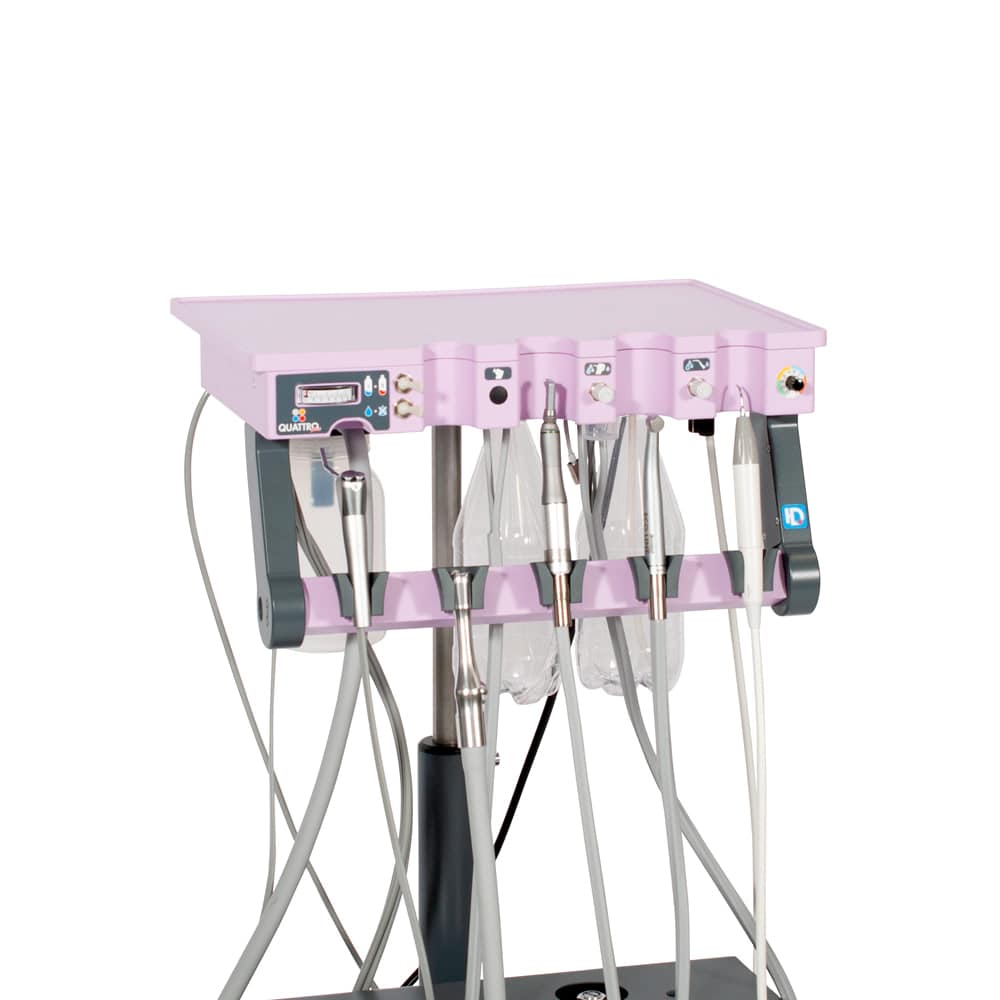

Lavender
Breeze
Rock
Grey
Ebony
Black
Italian
White
